St Michaels Sailing Scow

THE BAY'S ODDEST ONE-DESIGN By Craig O'Donnell.

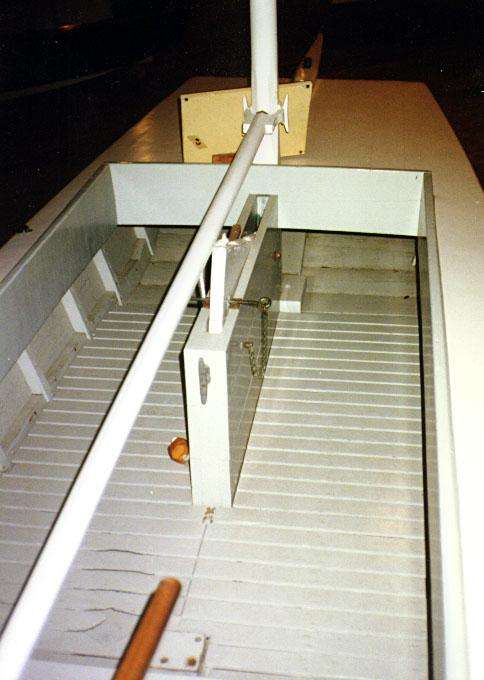

This boat is 12 feet long, and it caught my eye the first time I saw it in the Small Craft Building at CBMM. Although it's pictured in A Heritage in Wood the plans (on two sheets of typing paper) were hiding in the Library files. So I got a copy of the plans and built a model 1/3 real size. Next I'd like to build one full-size, using plywood. Since I'd be the entire one-design fleet at that point, I'd change the sail plan to a sprit-boom with club and use a leeboard so that there is sprawling space in the cockpit.   And there you have it. Click on the thumbnails below to see the plans as large GIF files suitable for building from; it's only a scow after all.

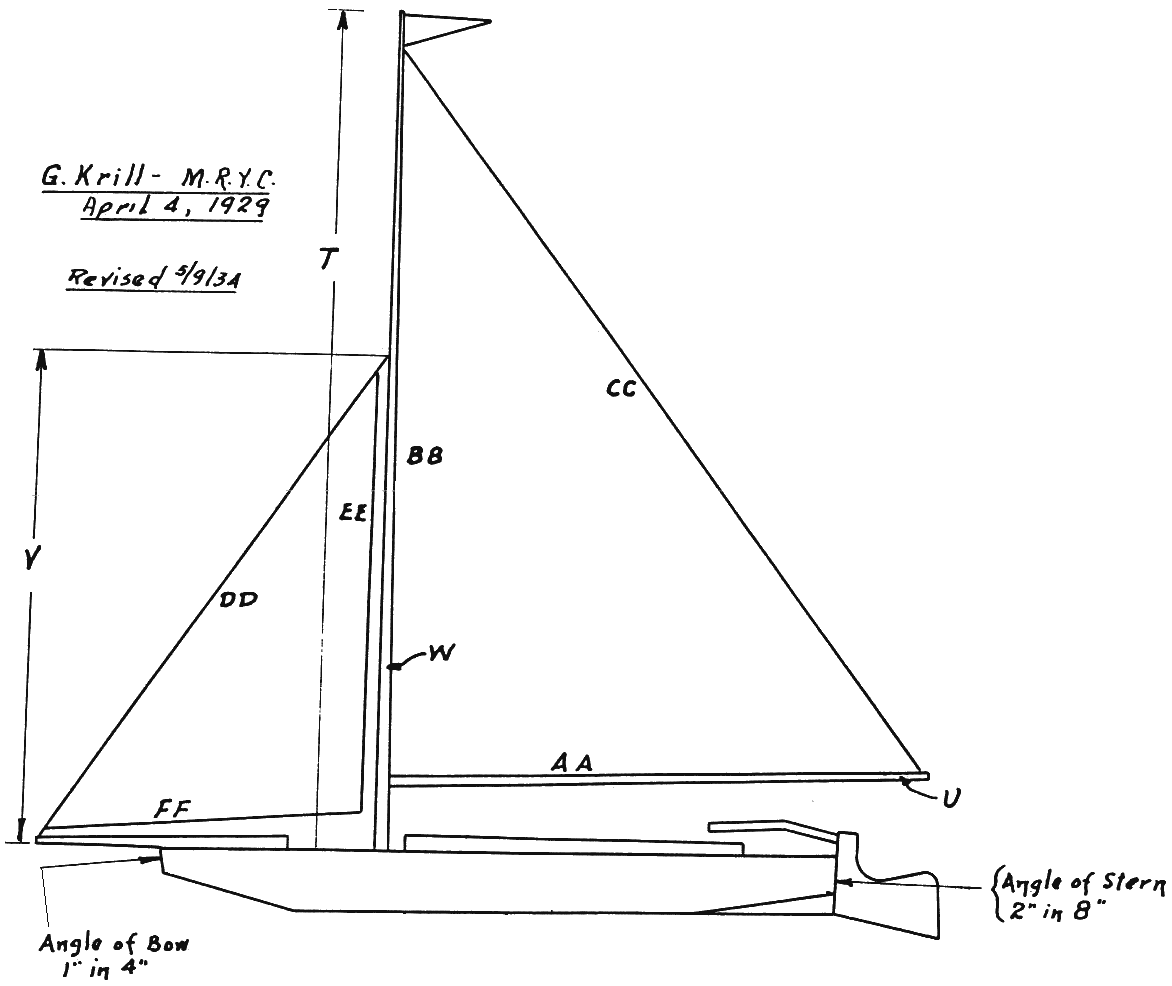

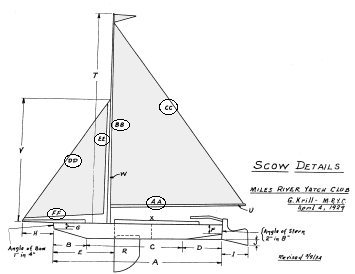

Sail Plan

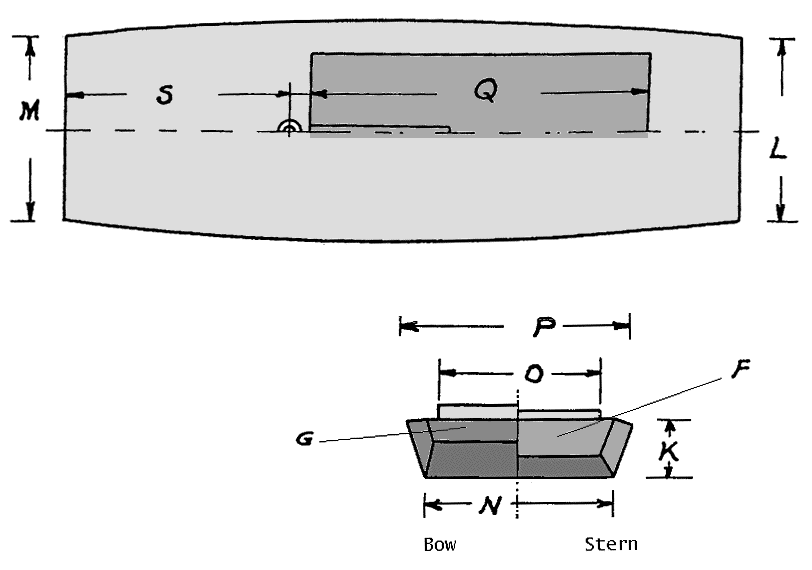

Deck

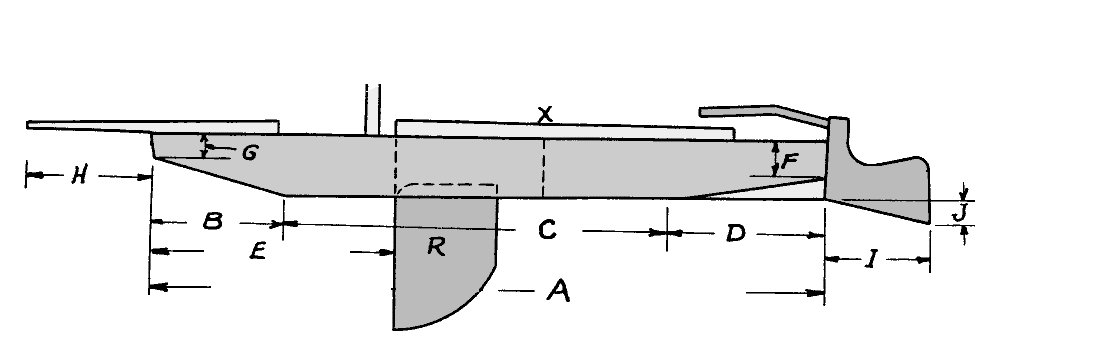

Side
Dimensions:



	Item		Inches						cm
			Full Size	1/3	1/4	1/2	Full Size Note		1:1
A	LOA		144	48.00	36.00	72.00			365.8
B	Bow Rake		40	13.33	10.00	20.00	41.48  Diag		101.6	105.4  Diag
C	Bottom		64	21.33	16.00	32.00	64x40 Bottom		162.6	152.4 x 101.6
D	Stern Rake		40	13.33	10.00	20.00	40.60  Diag		101.6	103.1  Diag
E	CB->FP		52.5	17.50	13.12	26.25			133.3
F	Transom Vert		8	2.67	2.00	4.00	8.25  Diag		20.3	20.9  Diag
G	Bow Vert		4	1.33	1.00	2.00	4.12  Diag		10.2	10.5  Diag
H	Sprit Overhang		30	10.00	7.50	15.00			76.2
I	Rudder Hor		21	7.00	5.25	10.50			53.3
J	Rudder Aft Subm		6	2.00	1.50	3.00	21.84  Diag		15.2	55.5  Diag
K	Hull Depth		15	5.00	3.75	7.50	15.52  Diag		38.1	39.4  Diag
L	Stern Beam		40	13.33	10.00	20.00			101.6
M	Bow Beam		36	12.00	9.00	18.00			91.4
N	Beam Bottom		40	13.33	10.00	20.00			101.6
O	Cockpit W Overall		34	11.33	8.50	17.00			86.4
P	Beam On Deck		48	16.00	12.00	24.00			121.9
Q	Cockpit Lng Overall		72	24.00	18.00	36.00			182.9
R	CB Fore-Aft		21	7.00	5.25	10.50			53.3
	CB Vert		30	10.00	7.50	15.00			76.2
S	Mast Ptr Ctr		48	16.00	12.00	24.00			121.9
T	Mast Above Deck		177	59.00	44.25	88.50			449.6
U	Boom		132	44.00	33.00	66.00			335.3
V	Jibstay Padeye		120	40.00	30.00	60.00			304.8
W	Mast Dia @ Deck		2.75	0.92	0.69	1.38			7.0
X	Coaming Max		3	1.00	0.75	1.50			7.6
	Aft End Cockpit		124.5	41.50	31.12	62.25			316.2
	Aft Deck		19.5	6.50	4.88	9.75			49.5
AA	Main Foot		129	43.00	32.25	64.50			327.7
BB	Main Luff		162	54.00	40.50	81.00			411.5
CC	Main Leech		204	68.00	51.00	102.00			518.2
	Area Sq Ft		73	8	5	18			7 sqM
DD	Jib Luff		132	44.00	33.00	66.00			335.3
EE	Jib Leech		105	35.00	26.25	52.50			266.7
FF	Jib Foot		70	23.33	17.50	35.00			177.8
	Area Sq Ft		26	5	3	12			2.4 sqM
